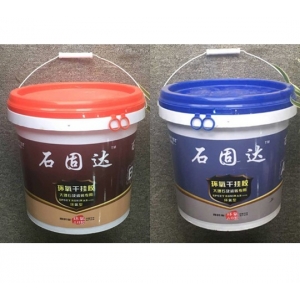

石固达环氧型石材AB干挂胶

序号NO

项目名称 ITEM

检测条件 TEST CONDITION

检测结果 TEST RESULT

1

压剪胶接强度
Strength of transpression and adhesive joint

标态养护48h
Maintenace in normal state for 48h

16.51MPa

2

压剪胶接强度
Strength of transpression and adhesive joint

标态养护168h
Maintenace in normal state for 168h

15.95MPa

3

压剪胶接强度
Strength of transpression and adhesive joint

标态养护168h后,再100℃/168h
After Maintenace in normal state for 168h,maintenace at100℃ for 168h

10.5MPa

4

垂直拉伸粘接强度
Strength of vertical stretch and adhesive bonding

标态养护168h
Maintenace in normal state for 168h

8.55MPa

树脂类别Resin type

不饱和聚酯树脂unsaturated polyester resin

形态Aspect

透明膏状
Transparent paste

淡黄色透明液体
Slightly yellow flowing

有色膏状
Colored paste

有色半流体
Coloring flowing

密度Density

1.05-1.15g/cm3

1.05-1.15g/cm3

1.5-1.7 g/cm3

1.4-1.6 g/cm3

粘度（25）℃ Viscosity(25)℃

100,000-300,000C.P

700-900C.P

350,000-800,000C.P

4,000-8,000C.P

有害分解物
Dangerous decomposition

置于火时会释放一氧化碳和二氧化碳 Usually none

弃置处理
Garbage discharge

以******和/或区认可正式程序弃置及处理 Based on the national and local laws or regulations

主体成分 Main ingredient

有机过氧化物 Organic peroxide

形态Aspect

白色糊状胶体 White gel

密度Density

1.12-1.18 g/cm3

粘度 Viscosity

100,000-200,000C.P

存储期（10-25）℃ Shelf life（10-25）℃

在原包装内12个月 12 mouths in original packing

有害分解物 Dangerous decomposition products

置于火中时会发生剧烈反应,释放出二氧化碳 Usually non

弃置处理 Garbage discharge

以******和/或区认可正式程序弃置及处理 Based on the national and local laws or regulations

序号NO

项目 ITEM

Q/WKD 002-2002

1

压剪强度石材-石材
Press shear strenght shone-stone

标准 Stone-stone standard

≥8Mpa

80℃168小时热处理80℃168h heating

≥7Mpa

25℃168小时浸水 25℃168water soak

≥5Mpa

25次冻融循环 25 times freezing and heating

≥4Mpa

2

有害物限量
Dangerous substance content

VOC 含量 Voc

≤350g/L

苯Benzene

≤1 g/Kg

甲苯+二甲苯 Methybenzene and dimethylbenzene

≤50 g/Kg

甲醛 Formaldehyde

≤0.1 g/Kg

温度（℃）
Temperature(℃)

可施工时间(min)
Workable time(min)

凝胶时间(min)
Gel time(min)

完全固化时间(h)
Complete curing(h)

0-10

8

10

12

10-20

5

7

8

20-30

3

5

6

30-40

2

3

4
